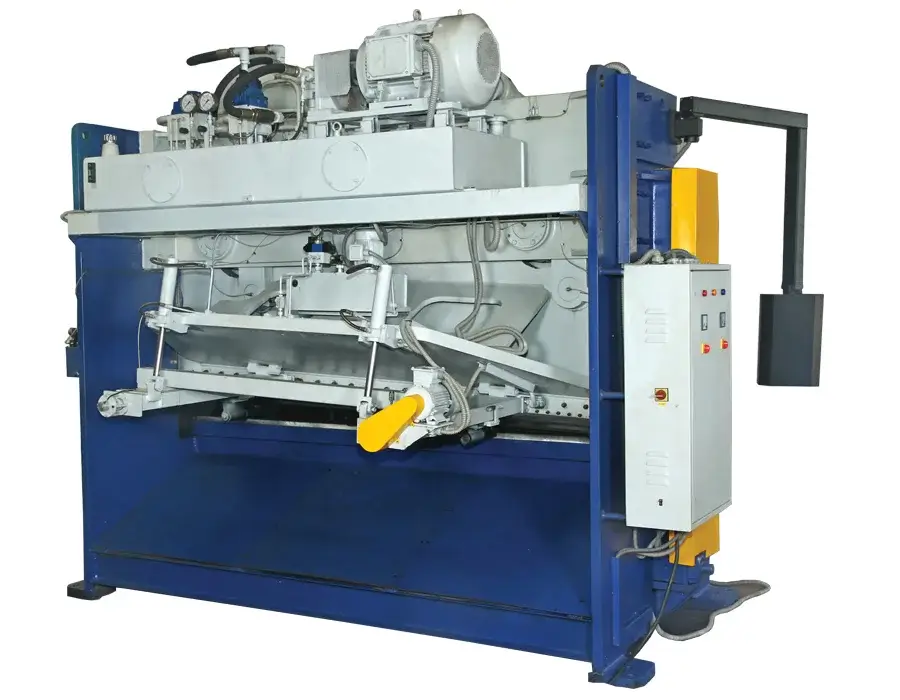

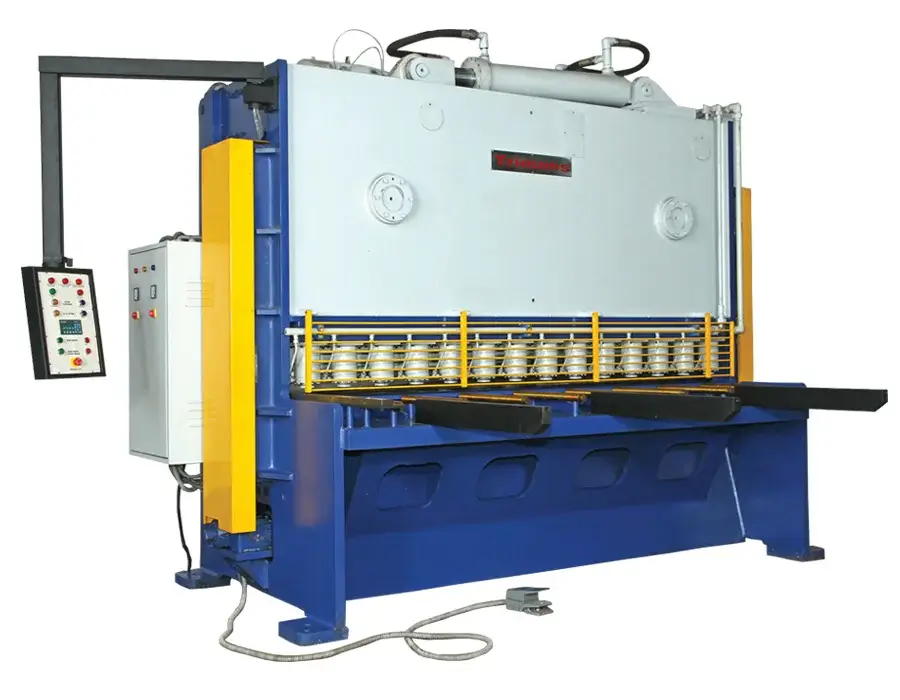

Extra Edge Hydraulic Shear

NuGEN Machineries Limited offers Trimans Extra Edge Hydraulic Shear, which is a versatile alternate to the conventional over crank shear. The rigid welded steel structure is designed to withstand heavy shocks of overloads and to perform for a longer period. Horizontally mounted single cylinder with pair of bell crank levers offers the simplest Hydraulic system. All lever pivots are assembled with permanently self lubricated spherical bearings.

NuGEN Advantage

  • Quality Management System standard ISO 9001 : 2015 certified by DNV-GL
  • Wide Product range
  • Prompt service support after sales
  • Prompt delivery
  • Guidance for machine selection by well experienced & qualified engineers.
  • Guidance for proper selection of the tooling based on customer’s job application by well experienced & qualified engineers.



Salient Features

The blade movement is powered by a relatively small, single hydraulic cylinder driving a pair of “bell cranks” arms.

The mechanical advantage gained by this system provides all the force necessary for full shearing capacity.

Rake Angle adjustment by push button gives twist free shearing.

Easy and fast motorized blade gap setting arrangement by push button.

Guides are located on outside the frames to provide accurate guidance to cutting beam. This allows visual inspection of the guides for wear without dismantling the ram.

Built in hydraulic overload protects the Hydraulic Shearing Machine and the blades against damage due to misuse or overload.

Hydraulic hold downs provide positive gripping of plates while shearing of narrow.

Both top and bottom blades have four usable edges and rare interchangeable.
